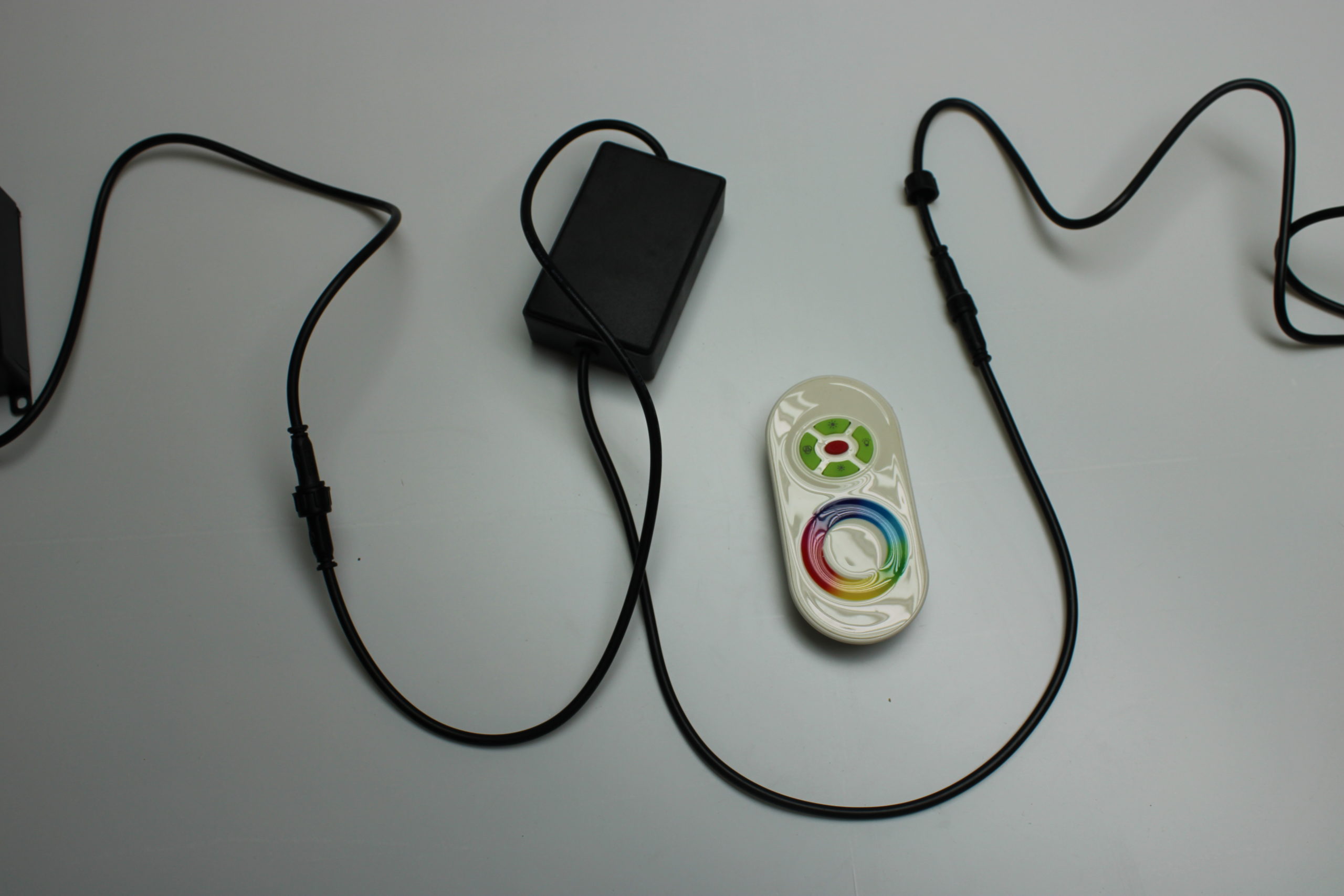

RGB Controller & Control Box

  • Easy Install
  • No Cutting
  • No Wire Nuts
  • Weather Proof Connection
  • Color Changing
  • CONTROLLER AND CONTROL BOX ONLY

$30.00

In stock - ready to ship

Best Price Guarantee
Buy direct so you save money.
Free shipping eligible
Minimum order of $300. Restrictions apply.
Top brands you can trust
A combination of quality and value that cannot be matched.

Remote control function:

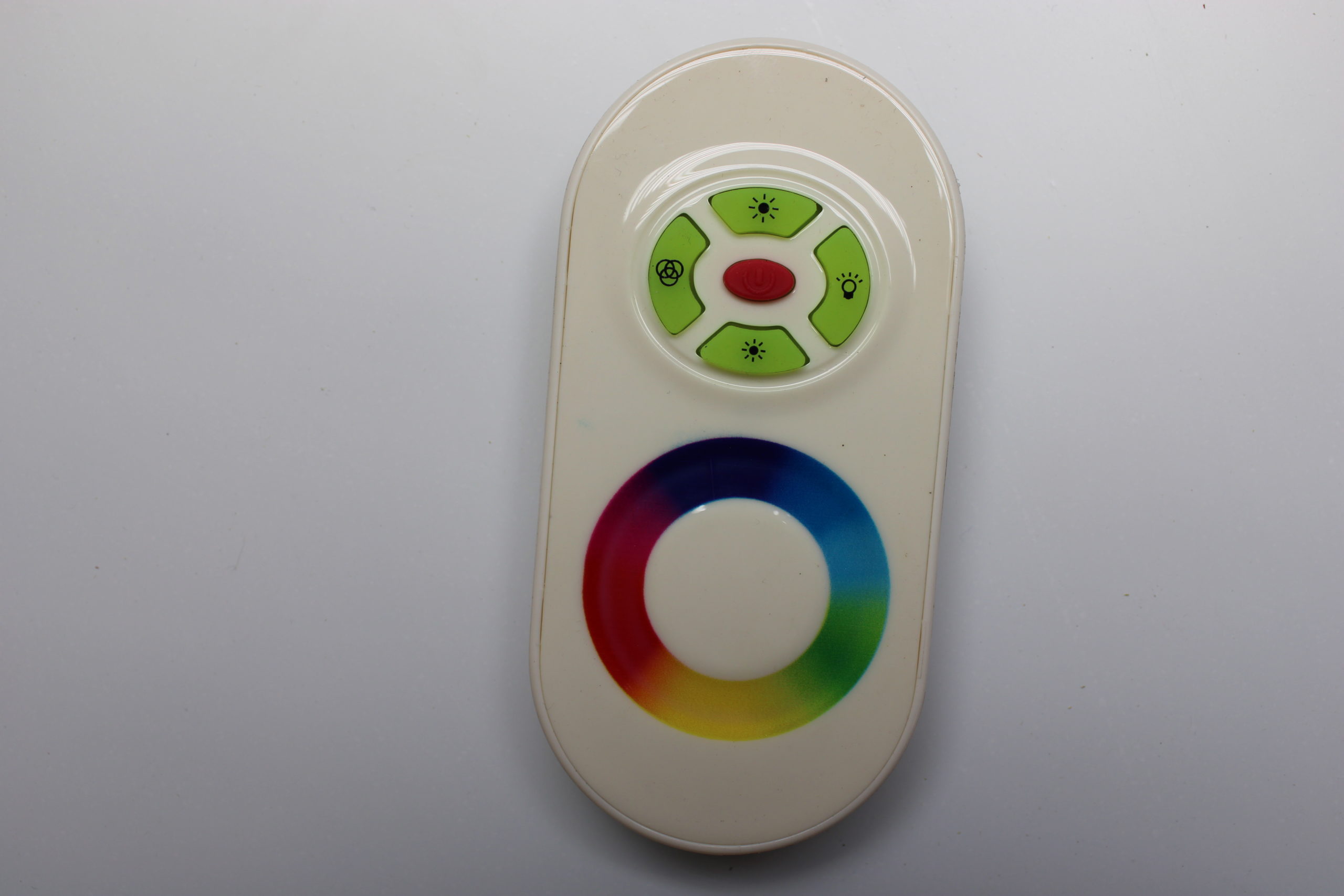

FEICAN Touch remote control led rgb strip 5 Key rgb led rf controller



Key 1:ON/OFF

Key 2:light changing mode(Total 15 modes)

Key 3:color light/white light switching mode

Key 4:brightness/speed+

Key 5:brightness/speed-

Direction for use:

Function introduction:

1,Use the RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.

2,In the open area remote control distance is over 30 meters;

3,the controller is full touch remote with color right on it , user can change the color simply by touch the color ring.

Operation method:

Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

Just the ON key is valid in OFF condition, to turn on the controller by press the ON key for the first time.the controller will be in the same mode as last time it save.

In on condition,press the Key 2 can be realize the 15 kinds of changing mode as follows:



NO. Mode remark
1 three color jump  Key 4 and key 5 can be adjust the changing speed of the dynamic mode
2 seven color jump
3 three color fade
4 Seven color fade
5 Red strobe-flash
6 Green strobe-flash
7 blue strobe-flash
8 yellow strobe-flash
9 Cyan  strobe-flash
10 Purple strobe-flash
11 White  strobe-flash
12 White strobe-flash
13 Red–purple-blue fade
14 gree-blue fade
15 Red-gree fade

Press Key 3 once to activate white light mode.when switch to the static color,can be touch the color ring to realize the color you want.

In static color mode,can be adjust the light brightness by press Key 4 or key 5.

In dynamic mode, can be press the key 4 or key 5 to adjust the changing speed.
