Strong Tie Joist hanger 2×6,2×8

Dextrusions

Sale!

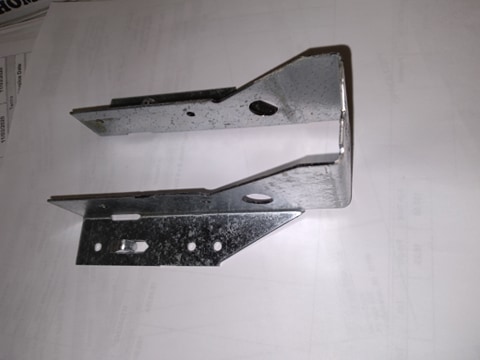

Two galvanized steel joist support hangers showing mounting holes and flanges

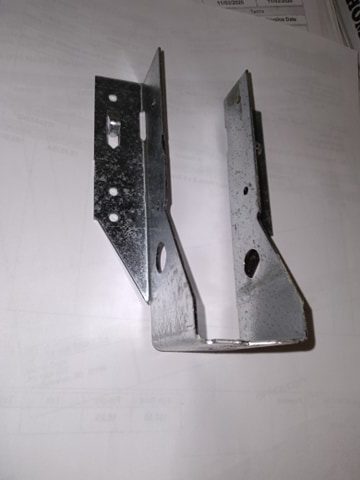

Two galvanized steel joist support hangers shown from the side
Galvanized joist hanger installed on pressure-treated wood deck framing

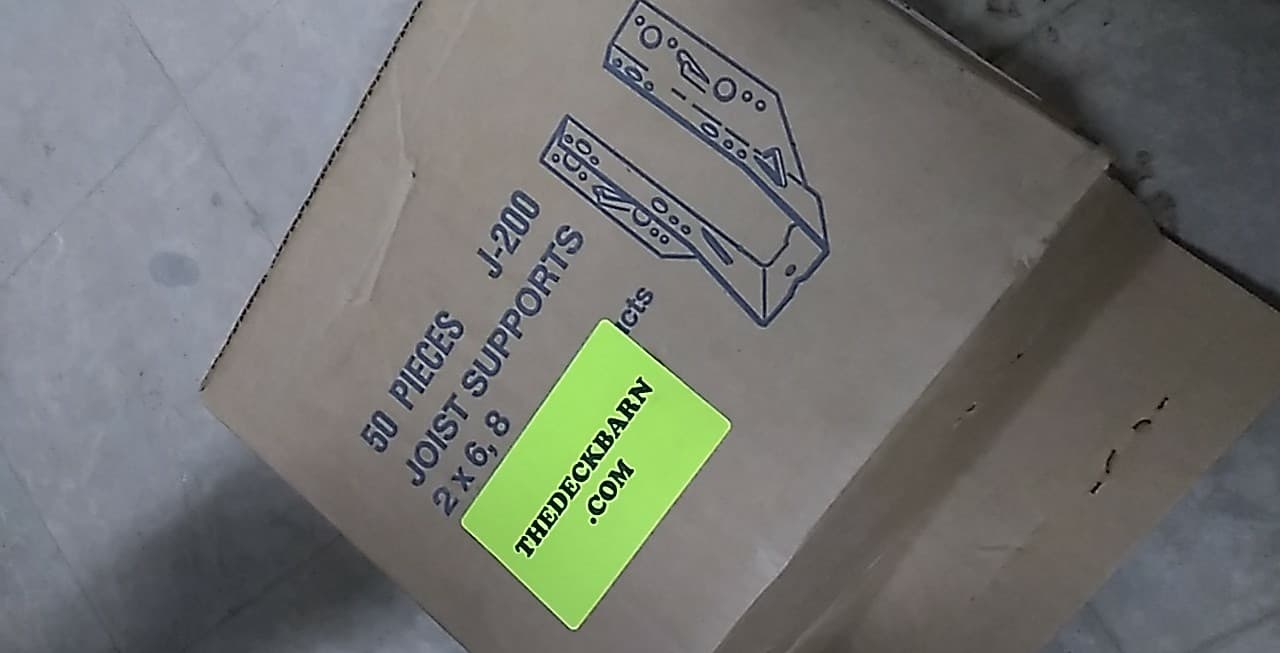

J-200 joist support hangers 50-piece box for 2x6 and 2x8 lumber with The Deck Barn sticker

Joist Hanger – for 2″ x 6-8″ joist “2×8 joist shown in photo”

Installation:

  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products.
  • Nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
  • Not designed for welded or nailer applications.
  • 16d sinkers (0.148″ dia. x 3 1/4″ long) may be used where 10d commons are specified with no reduction in load. Where 16d commons are specified, 10d commons or 16d sinkers (0.148″ dia. x 3 1/4″ long) may be used at 0.85 of the table load.

Price range: $0.80 through $40.00

Choose options to confirm availability
SKU: 01-0501-001003
Best Price Guarantee
Buy direct so you save money.
Ships to USA and Canada
See our shipping details page.
Top brands you can trust
A combination of quality and value that cannot be matched.

Dextrusions

Dextrusions manufactures high quality aluminum balusters at prices the big name brands cannot beat. Long-lasting and extremely durable, more contractors are turning to Dextrusions for their projects.

Detailed Specifications

Weight 0.25 lbs
Pieces

1, 50

Dextrusion strong Tie LU26 20-Gauge 2×6 Face Mount Joist Hanger is designed for joist-to-header installation in wood-framed construction. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation. The economical LU hanger is value engineered for strength. Key Features LU-series hangers are tested, load rated and code compliant The LU series installs using several fastener selections with tested allowable loads Material See tables Finish Galvanized Installation Use all specified fasteners Joists sloped up to 1/4: 12 achieve table loads When nailing into solid sawn carrying members end grain, the allowable load is adjusted by a factor of 0.67
