Threaded Stud Tension End Fitting For 1/8 Cable rail

Stainless Steel Tensioners, insert wire, crimp, tighten up nuts.

36″tall rail requires, 14 per runs of 7 strands of cable can easily tension 50′ long runs.

About this item

• Compatibility: These threaded swage stud fittings are designed for 1/8″ wire rope cable, making them compatible with both wood and metal posts measuring 2″x2″. Each swage threaded stud comes complete with a washer and lock nut, great for DIY deck cable railing projects. The threaded stud tensioner is suitable for outdoors or indoors, and compatible with wood, steel, or aluminum posts for deck railing.
• Marin Grade T316 Stainless Steel: Made from T316 marine grade stainless steel. CKE swage threaded stud tension end fitting terminal is built to withstand the harshest outdoor conditions, a combination of strength, corrosion resistance, and aesthetic appeal, ensuring long-lasting protection for your cable railing system.
• Size: Overall Length = 3-7/8″, Thread Length = 1-7/8″ – 1/4″ – 20, Hole to Drill=0.25″. The cable railing tensioner is fit for 1/8″ stainless steel wire rope cable, suitable for wood/metal posts.

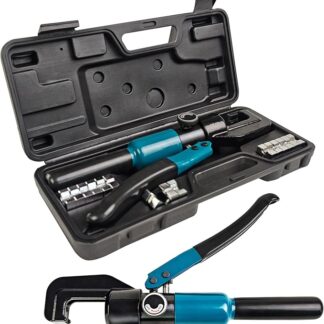

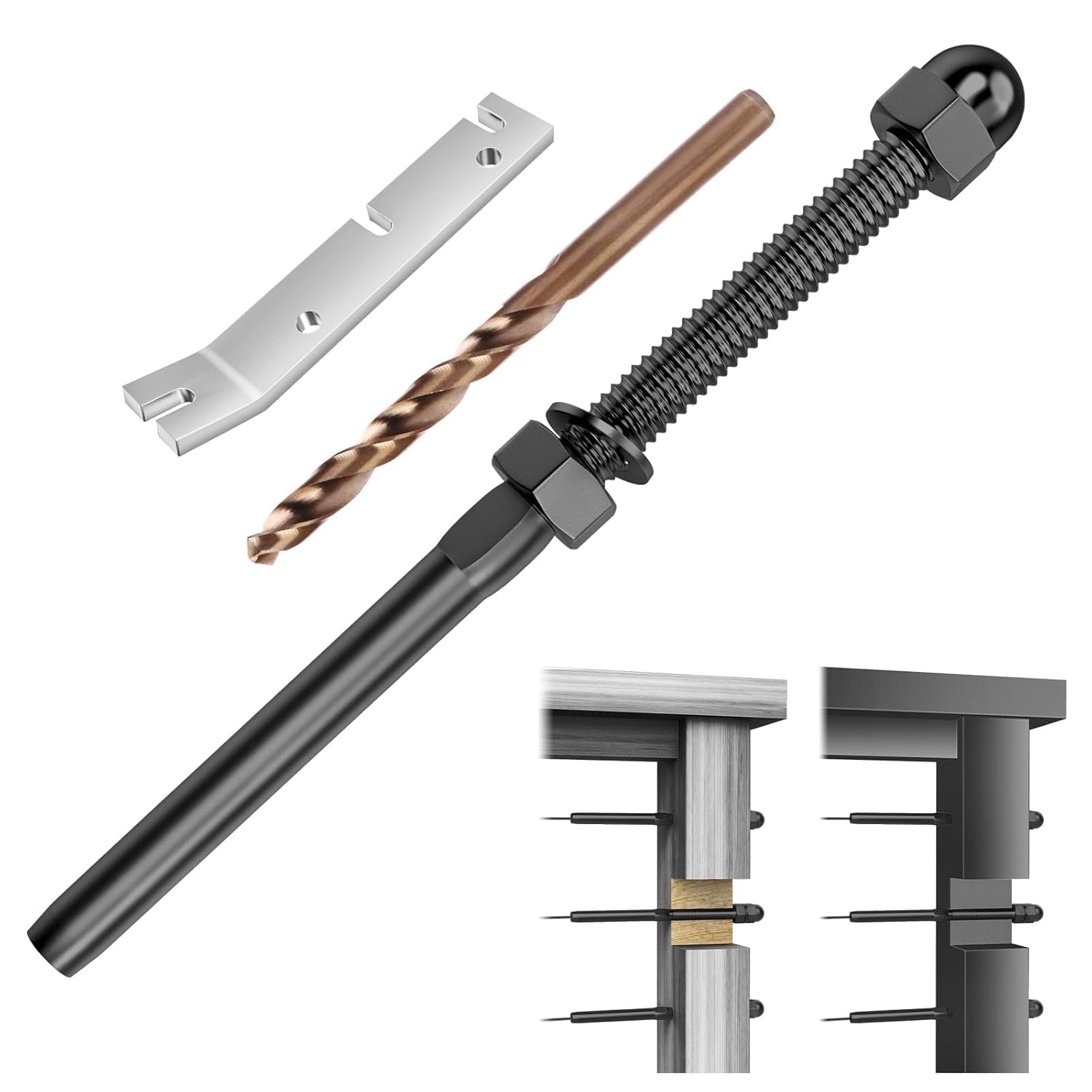

• Construct Cable Railing System Suggestion: CKE building a cost-effective stainless steel cable railing system suggestion: Hydraulic Crimper: CKE HC01, Swage Threaded Stud: CKE BCR006, Level Protector Sleeve: CKE BCR01. Angle Runs-1/4″ 30 Degree Angle Beveled Washer: CKE BCR17, Angle Protector Sleeve: CKE BCR30. Drill Guide: CKE DG02. 1/8″ Cable Railing Wire Rope
